Winding axle and drive
from the BARTELS yachting programme
Flexible shaft between jib furler and swivel
Large rollable awning system
The RM-MAX system is the great all-rounder for medium and large sail areas up to 75 m². The winding axis and the masts are particularly stable. The sail is tensioned using winches. With this type of system, the height of three attachment points can be adjusted. This allows you to adjust the awning so that it provides the desired shade at any time of day, even when the sun is low in the sky.
Tightly stretched and wrinkle-free!
All SunFurl sun sails are of exceptionally high quality, as they are manufactured by professional sailmakers who always work with high-quality and highly resilient materials. Due to the high pre-tensioning forces, the sail is taut and wrinkle-free. The sail can be used as rain protection if there is a sufficient gradient.
(Dis)assembly in just 15 minutes
During the winter months, the system can be completely dismantled in a few simple steps. The dry rolled-up sail is rolled into a ring and, including the winding axle and all lines, stowed away safely in the winter protection bag. The masts can be pulled out of the ground sleeves and stored in the garage, for example. Only the inconspicuous wall plates and ground sockets remain permanently installed.
Variants
Advantages
- Dynamic 3D sail geometry
- Maritime flair (winding axis, winches, lines, sails)
- Flexible shaft (easy assembly and disassembly)
- High surface tension (winches)
- High wind stability / good rainwater drainage
- Height adjustment possible on winding shaft and sail extension
Colors
SunFurl RM-MAX systems are available in HydroSol270 and SolMesh340 fabrics in the colors shown below. Click here for more information on fabrics and colors.
Sailcloth HydroSol270 Colors

Lava Grey Linen
HS 1016

Grey
HS 1017

Charcoal Grey
HS 1018

Light Grey
HS 1019

Silver Grey
HS 1020
![[Translate to GB:] Segelstoff HS2010 Bianco [Translate to GB:] Segelstoff HS2010 Bianco](/fileadmin/sunfurl/stoffe/HS2010-Bianco.jpg)
Bianco
HS 2010

Akoya Linen
HS 3016
![[Translate to GB:] Segelstoff HS3015 Champagner [Translate to GB:] Segelstoff HS3015 Champagner](/fileadmin/sunfurl/stoffe/HS3015-Champagner.jpg)
Champagner
HS 3015
![[Translate to GB:] Segelstoff HS1015 Taupe [Translate to GB:] Segelstoff HS1015 Taupe](/fileadmin/sunfurl/stoffe/HS1015-Taupe.jpg)
Taupe
HS 1015

Beige Brown
HS 3017
![[Translate to GB:] Segelstoff HS4013 Bordeaux [Translate to GB:] Segelstoff HS4013 Bordeaux](/fileadmin/sunfurl/stoffe/HS4013-Bordeaux.jpg)
Bordeaux
HS 4013
![[Translate to GB:] Segelstoff HS8010 Orange [Translate to GB:] Segelstoff HS8010 Orange](/fileadmin/sunfurl/stoffe/HS8010-Orange.jpg)
Orange
HS 8010
![[Translate to GB:] Segelstoff HS5011 Citron [Translate to GB:] Segelstoff HS5011 Citron](/fileadmin/sunfurl/stoffe/HS5011-Citron.jpg)
Citron
HS 5011
![[Translate to GB:] Segelstoff HS6011 Pacific [Translate to GB:] Segelstoff HS6011 Pacific](/fileadmin/sunfurl/stoffe/HS6011-Pacific.jpg)
Pacific
HS 6011
![[Translate to GB:] Segelstoff HS7012 Limette [Translate to GB:] Segelstoff HS7012 Limette](/fileadmin/sunfurl/stoffe/HS7012-Limette.jpg)
Limette
HS 7012
Sailing fabric SolMesh340 Colors
![[Translate to GB:] Segelstoff SolMesh 3011 Dessert Sand [Translate to GB:] Segelstoff SolMesh 3011 Dessert Sand](/fileadmin/sunfurl/stoffe/SM3011-Dessert-Sand.jpg)
Dessert Sand
SM 3011
![[Translate to GB:] Segelstoff SolMesh 1012 Metal Grey [Translate to GB:] Segelstoff SolMesh 1012 Metal Grey](/fileadmin/sunfurl/stoffe/SM1012-Metal-Grey.jpg)
Metal Grey
SM 1012
![[Translate to GB:] Segelstoff SolMesh 8010 Orange [Translate to GB:] Segelstoff SolMesh 8010 Orange](/fileadmin/sunfurl/stoffe/SM8010-Orange.jpg)
Orange
SM 8010
![[Translate to GB:] Segelstoff SolMesh 4010 Red [Translate to GB:] Segelstoff SolMesh 4010 Red](/fileadmin/sunfurl/stoffe/SM4010-Red.jpg)
Red
SM 4010
![[Translate to GB:] Segelstoff SolMesh 7012 Green [Translate to GB:] Segelstoff SolMesh 7012 Green](/fileadmin/sunfurl/stoffe/SM7012-GReen.jpg)
Green
SM 7012
![[Translate to GB:] Segelstoff SolMesh 6011 Blue [Translate to GB:] Segelstoff SolMesh 6011 Blue](/fileadmin/sunfurl/stoffe/SM6011-Blue.jpg)
Blue
SM 6011

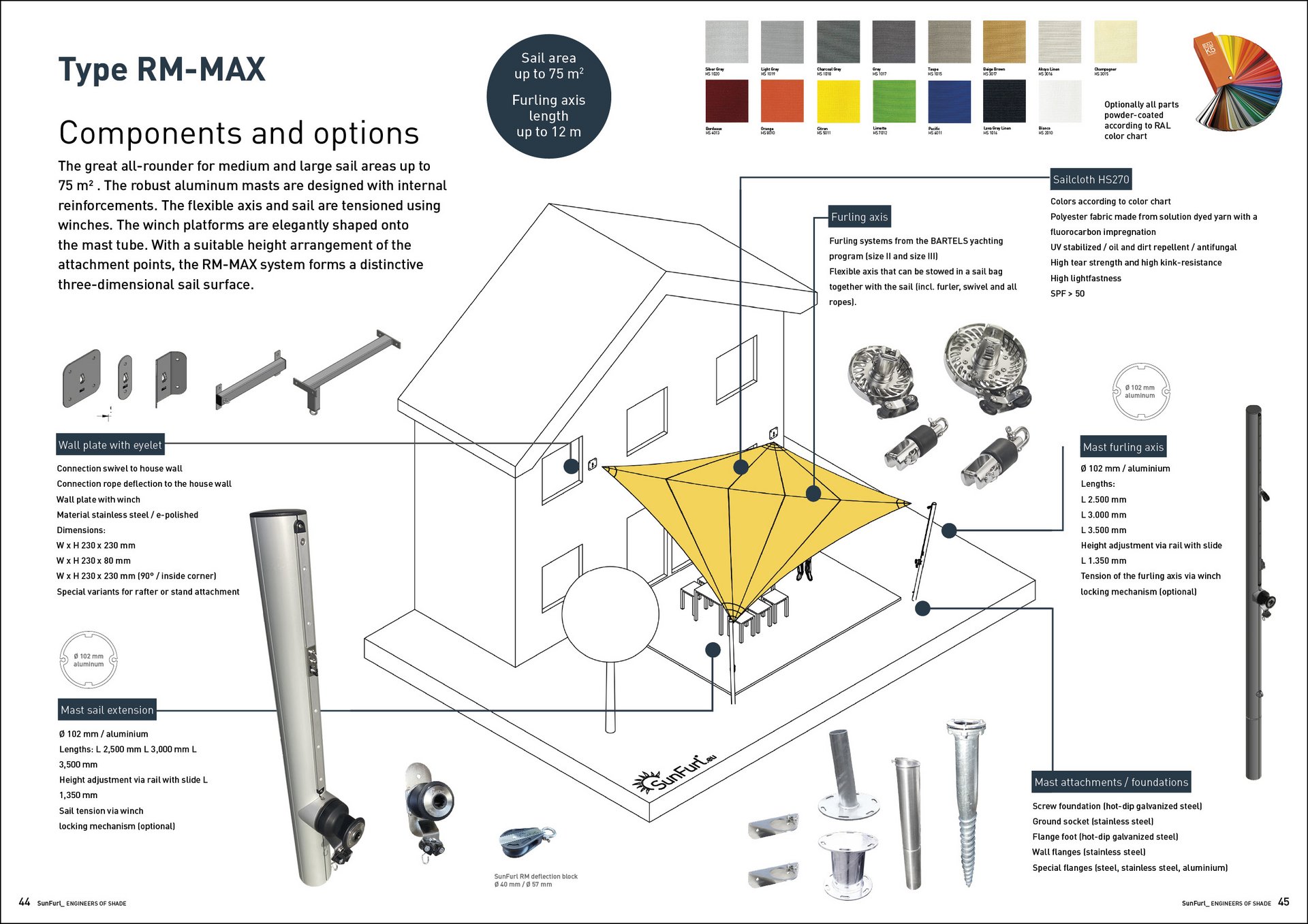

- Connection swivel to house wall
- Connection of line linkage to house wall
- Wall plate with winch
- Material stainless steel / polished
- Dimensions:
WxH 230 x 230 mm
WxH 230 x 80 mm
WxH 230 x 230 mm (90° / inside corner) - Special variants for rafter or post mounting
- Ø 102 mm / aluminium
- Lengths:
L 2,500 mm
L 3,000 mm
L 3,500 mm - Height adjustment via rail with carriage L 1,350 mm
- Sail tensioning via winch
- Locking mechanism (optional)
- Colours according to colour chart
- Polyester fabric made from spun-dyed yarn with fluorocarbon impregnation
- UV-stabilised / oil and dirt repellent / antifungal
- High tear resistance and high crease resistance
- High light fastness
- Light protection factor > 50
- Furling systems from the BARTELS yachting programme (size II and III)
- Flexible shaft that can be stowed together with the sail (incl. furler, swivel and all lines) in a sail bag.
- Ø 102 mm / aluminium
- Lengths:
L 2,500 mm
L 3,000 mm
L 3,500 mm - Height adjustment via rail with carriage L 1,350 mm
- Tensioning of the winding axis via winch
- Locking mechanism (optional)
- Screw foundation (hot-dip galvanised steel)
- Ground socket (stainless steel)
- Flange base (hot-dip galvanised steel)
- Parapet flanges (stainless steel)
- Special flanges (steel, stainless steel, aluminium)
- SunFurl RM deflection block
- Ø 40 mm / Ø 57 mm
